Hella LED Stop/Tail Insert-Jumbo – 2317

$230.00

2 in stock

Category:

Description

New NOS

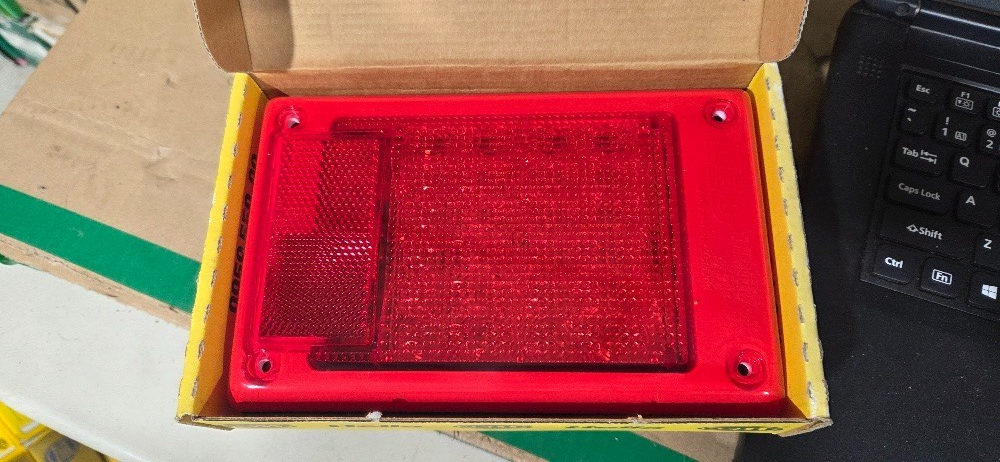

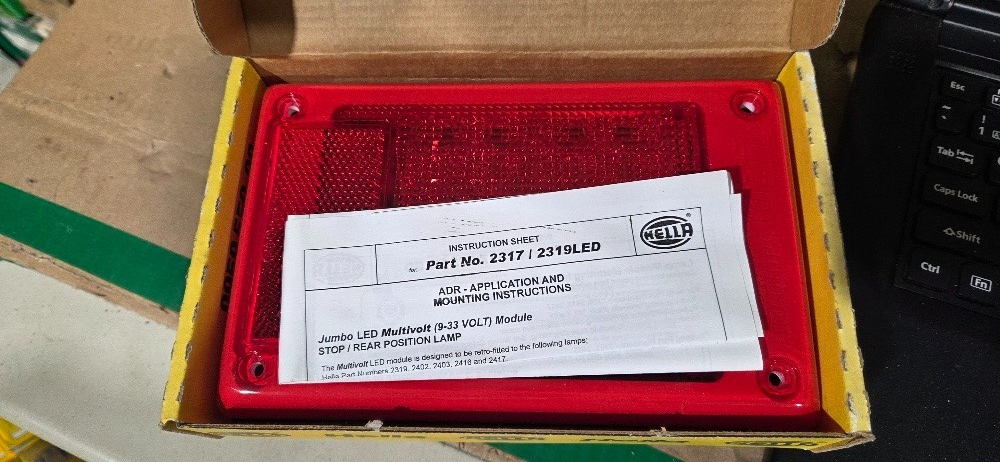

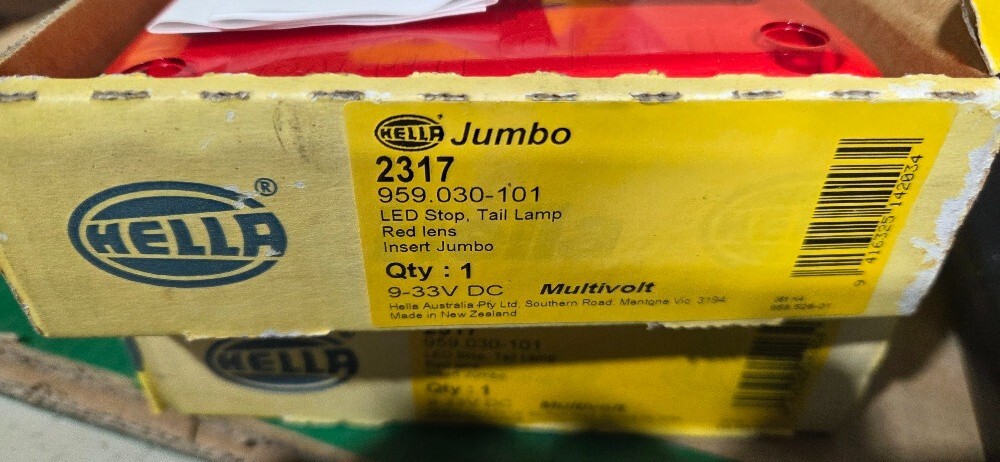

Hella 2317 Jumbo LED Stop / Rear Position Module - Inbuilt Retro Reflector



2317

Jumbo LED Stop / Rear Position Module - Inbuilt Retro Reflector

Description

Jumbo LED Multivolt Module with inbuilt red retro reflector utilising EDT (Enhanced Definition Technology) for the stop signal function. Designed to upgrade existing Jumbo and surface mount Designline lamps.



Voltage



Multivolt (9-33V DC).



Wattage



Stop - 9W
Rear Position - 2W



Protection



Reverse Polarity and 5.0kW Transient Voltage Suppressor (TVS).



Cable Length



20 centimetres



ADR No



47/00
49/00
49/00



ADR Function



Retro Reflector (Red/Rear)
Stop Lamp
Rear Position Lamp



CRN



22948
22514
22513


Accessories & Spare Parts
9.2319.09Single housing
9.2422.09BULKDouble housing (pack of 10)
9.2423.09Triple housing
